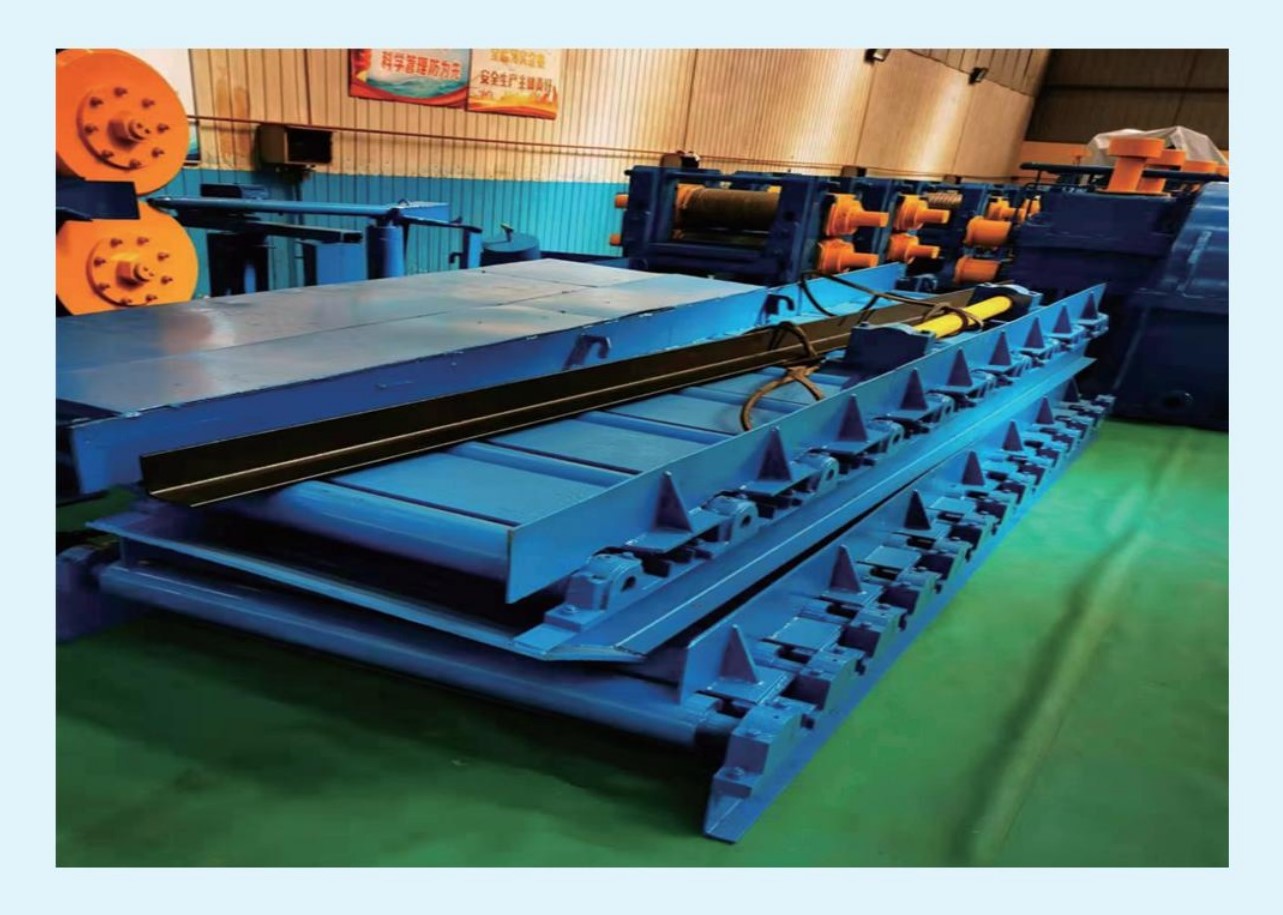

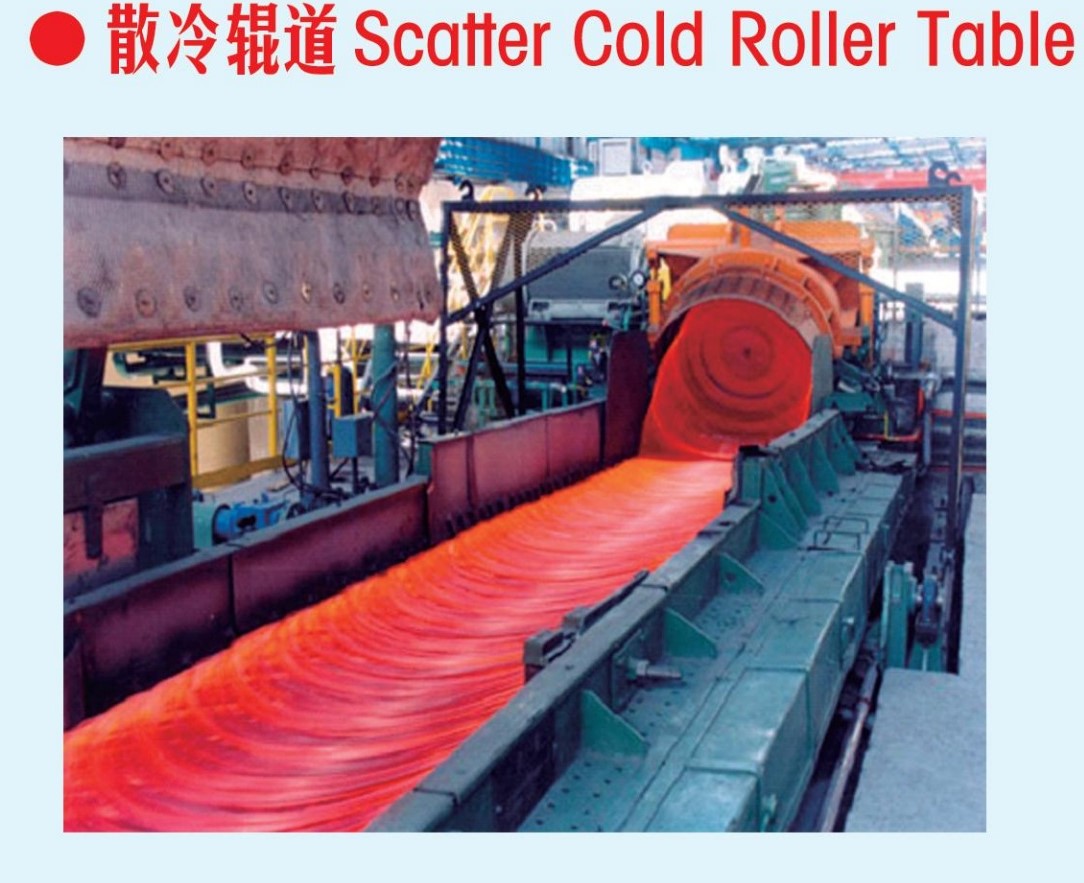

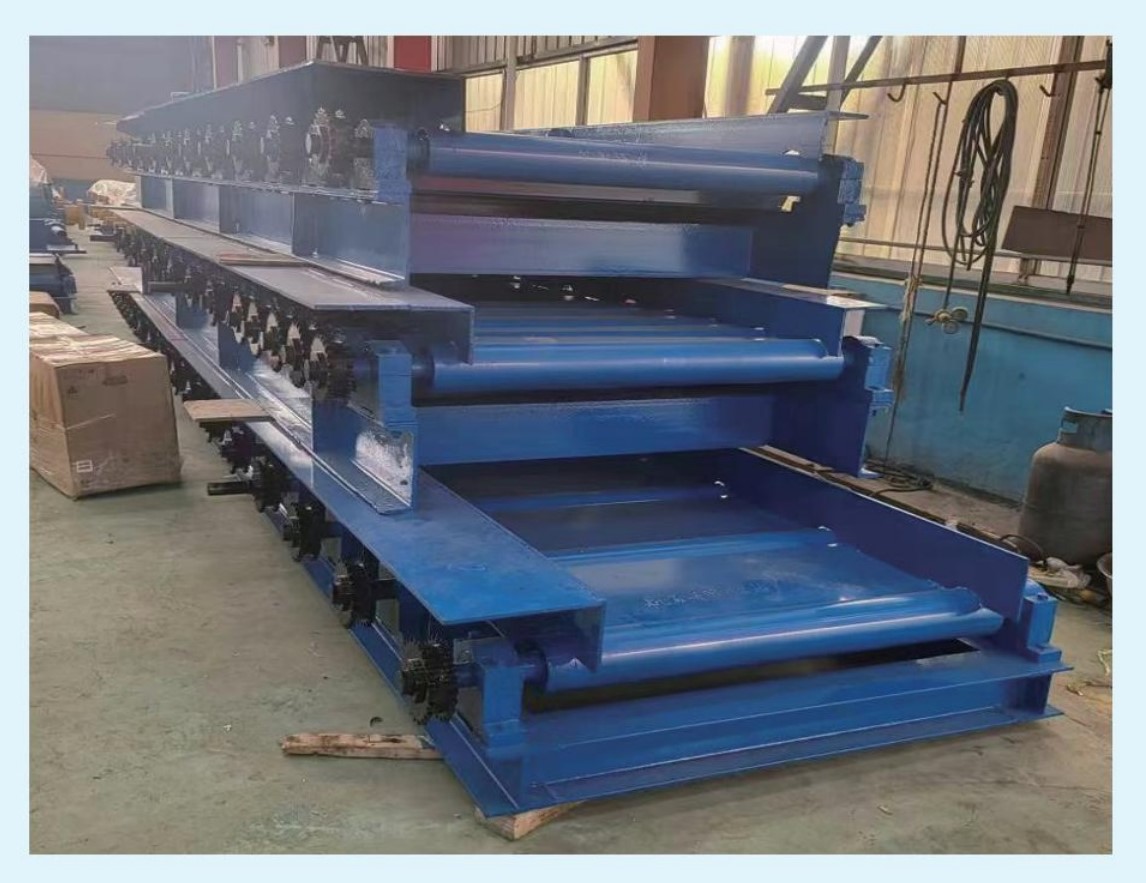

Scatter Cold Roller Table

Scatter Cold Roller Table:

1. Structure and Components:

Roller System: The scatter cold roller table typically consists of a series of rollers forming a smooth surface to support and convey the metal sheets or strips after hot rolling.

Cooling Device: The equipment is equipped with a cooling device that effectively cools the metal material through various methods such as water spray or other cooling media.

Drive System: The scatter cold roller table's drive system includes an electric motor, reducer, and transmission chain, ensuring the smooth operation of the rollers.

2. Functions and Applications:

Support for Cooling Process: Primarily used to support and propel the metal sheets or strips after hot rolling to ensure even cooling.

Enhanced Cooling Effect: Through the cooling device, the scatter cold roller table can significantly improve the cooling effect of the metal material, ensuring it attains the desired hardness and mechanical properties.

Transition Adjustment: During the transition from hot rolling to the cooling phase, the scatter cold roller table provides a smooth transition, preventing uneven cooling due to a rapid temperature drop.

3. Features and Advantages:

High Load Capacity: The design of the scatter cold roller table allows it to bear the weight of heavy metal materials while maintaining high stability.

Adjustability: The height and angle of the rollers are often adjustable to accommodate metal sheets or strips of different specifications and thicknesses.

High-Temperature Resistance: Scatter cold roller tables typically use materials and coatings resistant to high temperatures to adapt to the elevated temperature of the metal material after hot rolling.

4. Application Areas:

Hot Rolling Production Lines: The scatter cold roller table is an essential part of hot rolling production lines, facilitating the cooling of metal materials.

Various Metal Materials: Suitable for cooling different types of metal materials, including steel, aluminum, and others.

5. Maintenance and Safety:

Regular Inspection and Cleaning: Regular checks and cleaning are essential to prevent water accumulation or debris on the roller table, ensuring smooth operation.

Safety Facilities: Scatter cold roller tables should be equipped with safety features such as emergency stop buttons and protective covers to ensure operator safety.

The scatter cold roller table plays a crucial role in the Hot Rolling Mill, ensuring uniform and effective cooling of metal materials after hot rolling.
