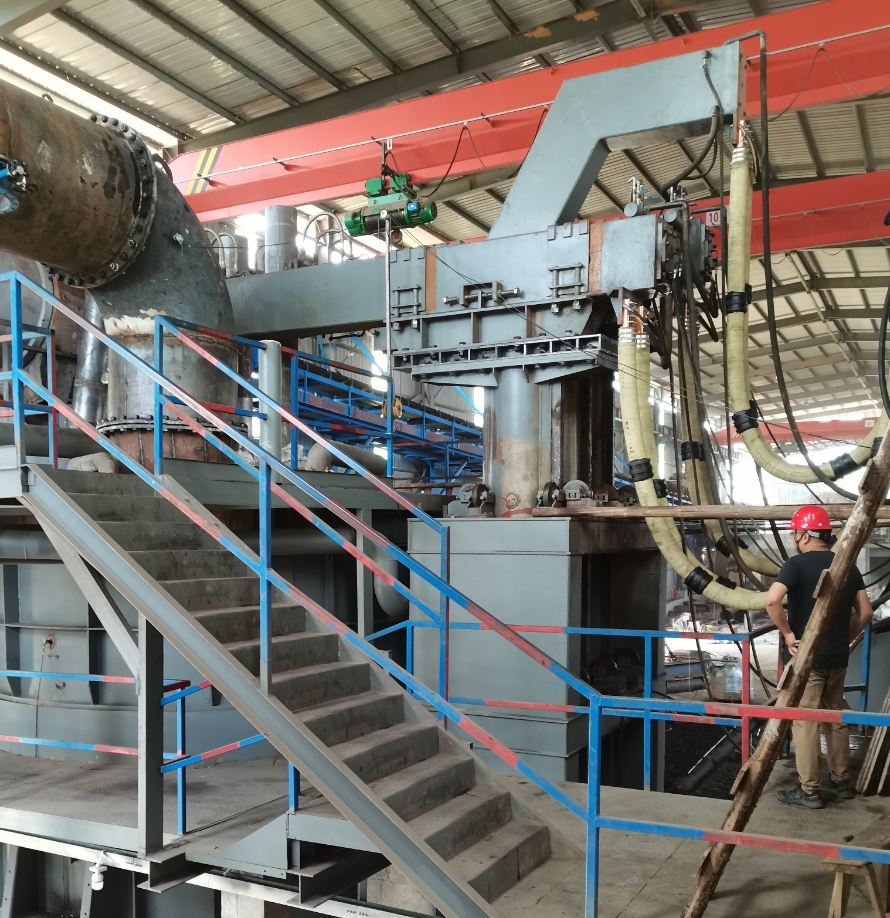

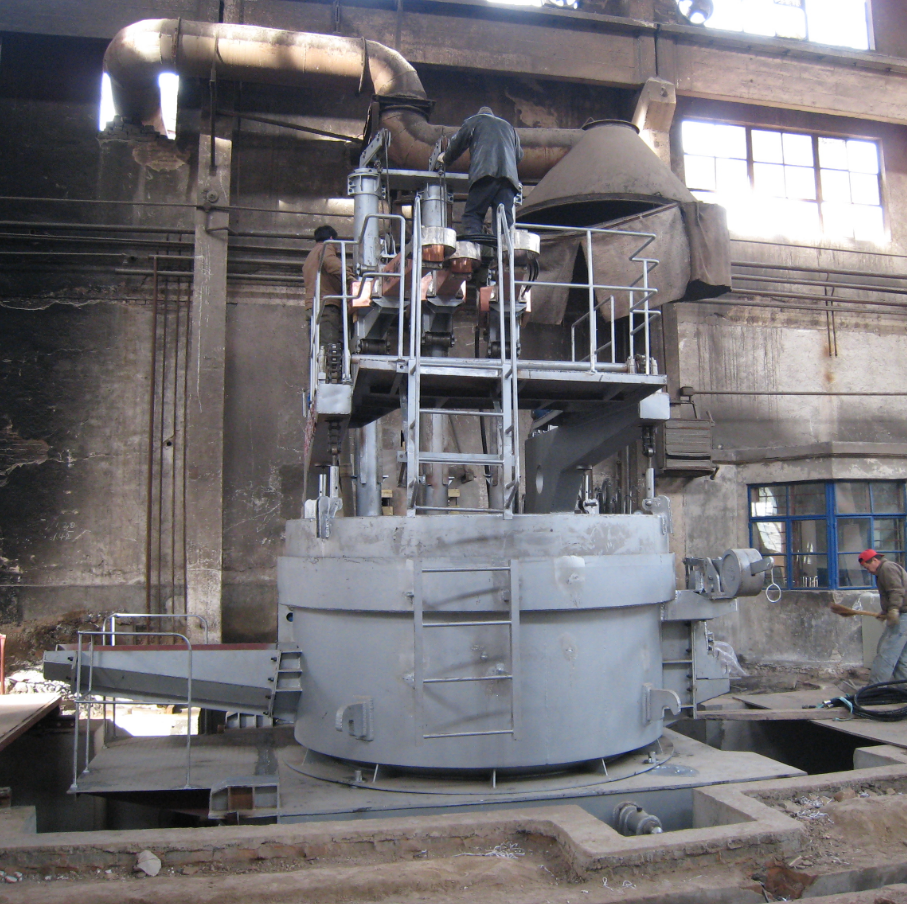

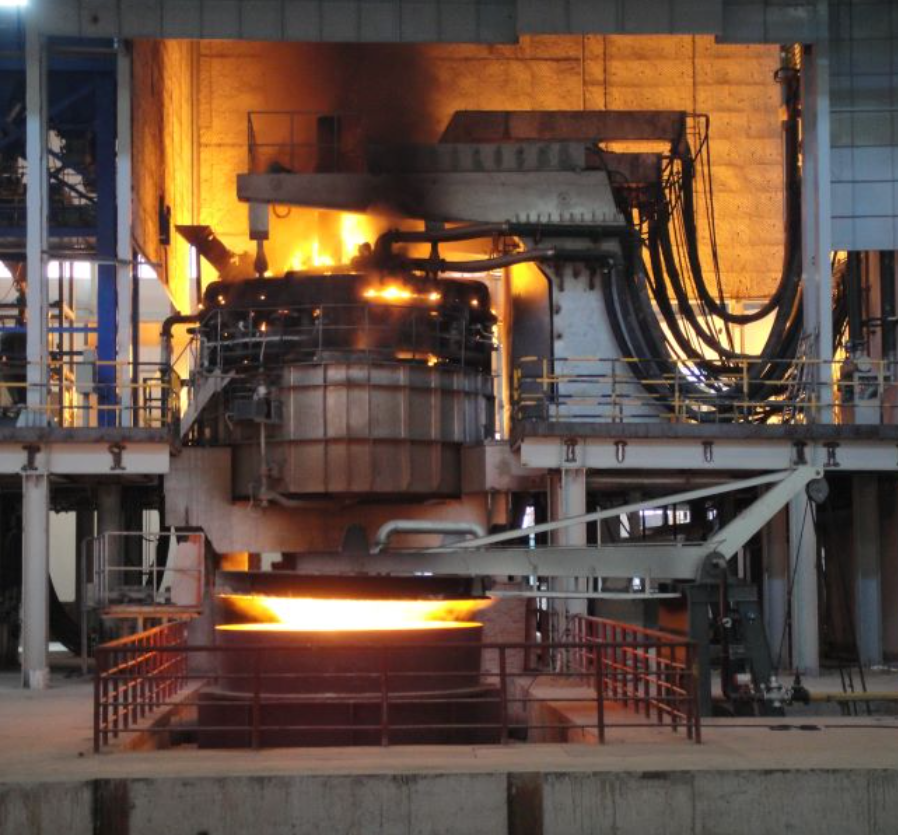

Electric arc furnace

  • Electric arc furnace
  • Electric arc furnace
Electric arc furnaceElectric arc furnace

Electric arc furnace

  • capacity:1-30ton
  • Power: 500-28000KW
  • Voltage:98-650v
  • Product description: Used for melting various non-ferrous metals
  • INQUIRY E-mail WhatsApp

Electric arc furnace model

Model

Inner diameter of furnace shell

Capacity

Rated capacity of transformer KVA

Secondary transformer

V

Reactor capacity

KVar

Diameter of electrode distribution circle

Electrode diameter

HX-0.5

2000

0.5/1

630

200-98

120

500

150

HX-1.5

2000

1.5/3

1250

210-104

200

650

200

HX-3

2600

3/8

2200

210-104

250

750

250

HX-5

3200

5/12

3200

221-110

320

850

300

HX-10

3500

10/16

5000

6300

240-121

260-139

360

360

1000

350

HX-15

3700

15/20

6300

9000

260-139

260-139

340

1000

350

HX-20

4000/4200

20/32

9000

12500

16000

260-139

340-195

375-200



1000

1050

1050

350

400

400

HX-30

4600

30/45

16000

25000

32000

375-200

570-350

650-350

4000

1100

1100

1100

450

450

450

       Electric arc furnaces can be divided into three-phase arc furnaces, consumable arc furnaces, single-phase arc furnaces, and resistance arc furnaces according to the form of the arc. The furnace body of an electric arc steelmaking furnace consists of a furnace cover, a furnace door, a steel outlet groove, and a furnace body. The furnace bottom and walls are constructed with alkaline refractory materials or acidic refractory materials. Electric arc steelmaking furnaces are divided into ordinary power arc furnaces, high-power arc furnaces, and ultra-high power arc furnaces based on the amount of transformer capacity per ton of furnace capacity. Electric arc furnace steelmaking is the process of inputting electrical energy into an electric arc steelmaking furnace through graphite electrodes, using the arc generated between the electrode end and the furnace charge as the heat source for steelmaking. Electric arc furnaces use electrical energy as the heat source and can adjust the atmosphere inside the furnace, which is extremely advantageous for melting steel grades containing more easily oxidizable elements.
