Intermediate frequency furnace

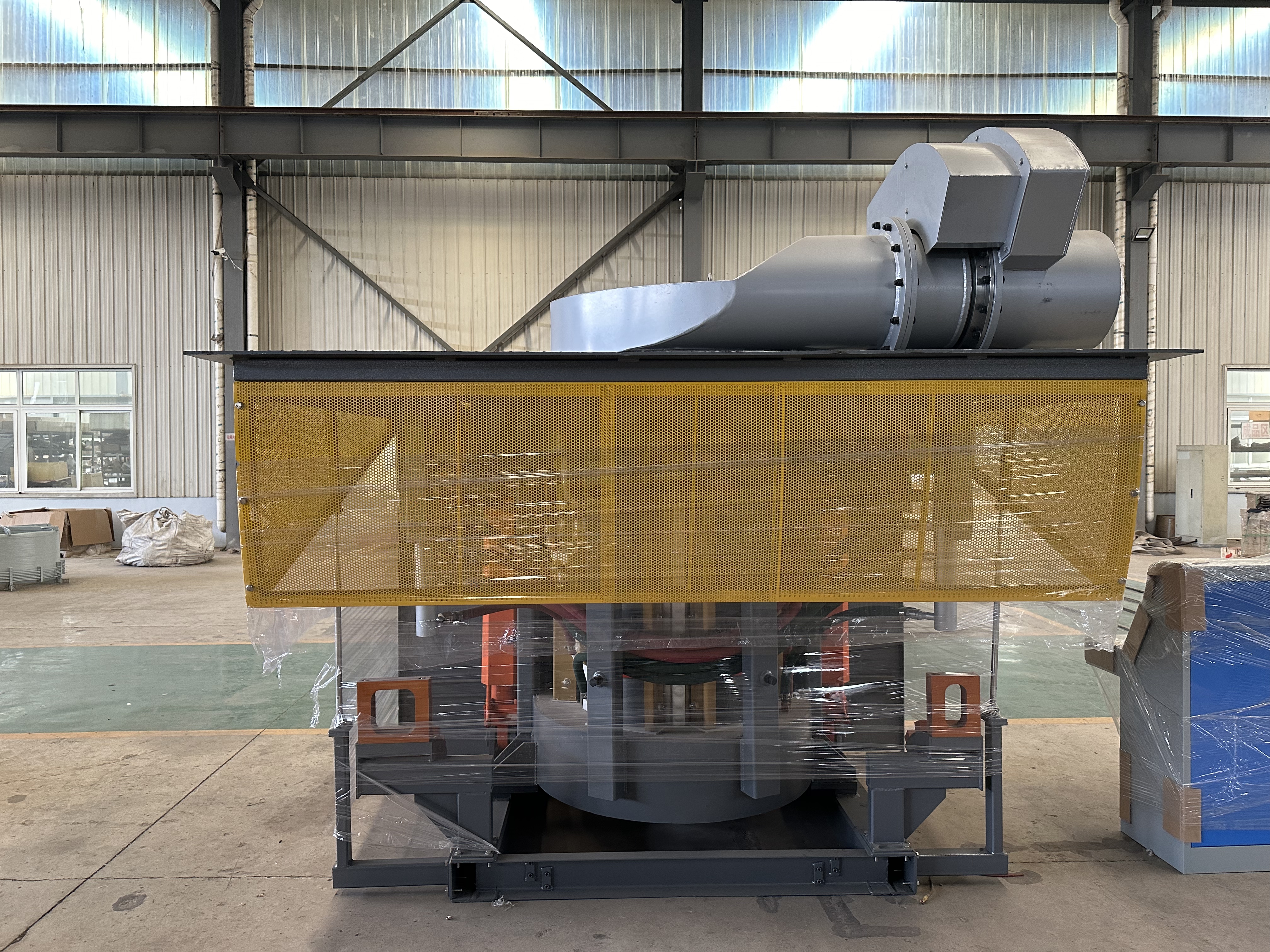

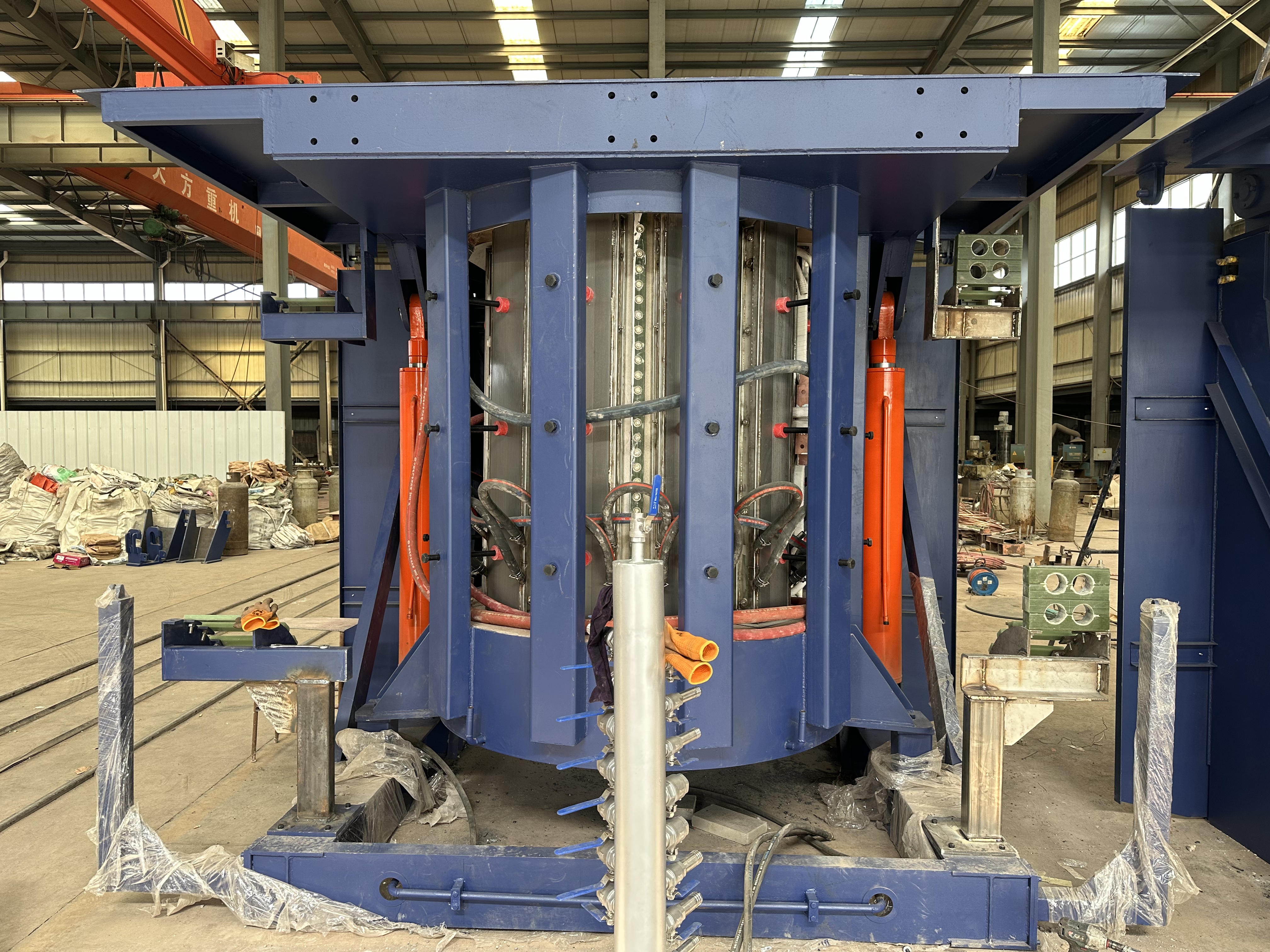

Intermediate frequency melting furnace

Capacity:500KG-20000KG
Furnace body material：Steel shell/aluminum shell
Required power：200-14000KW
Product description: Intermediate frequency induction melting furnace is used for melting non-ferrous metals
INQUIRY E-mail WhatsApp

Technical features: series connection technology

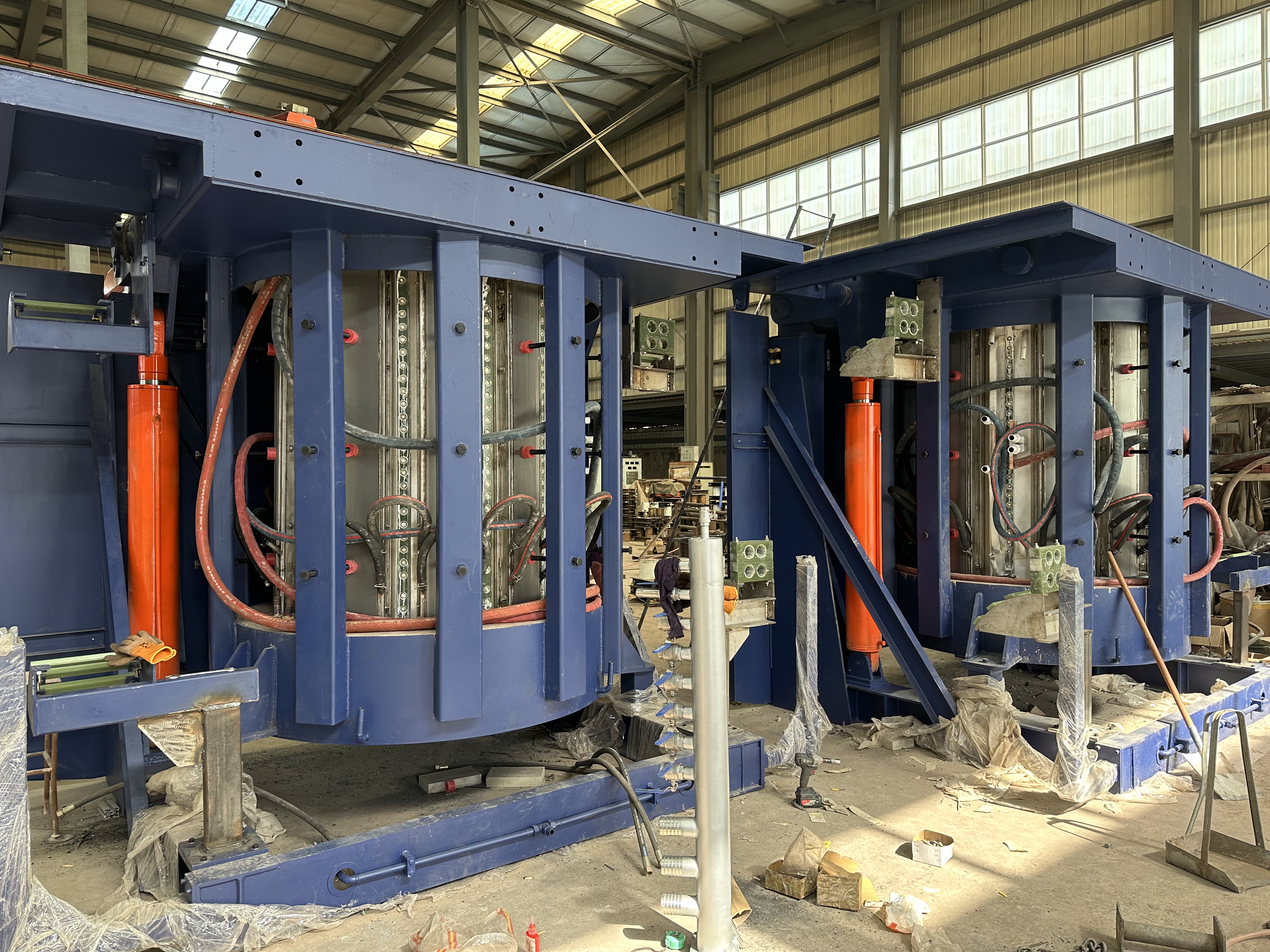

The series resonant one to two power cabinet can distribute the power of two furnaces arbitrarily within the rated power, while keeping one furnace insulated and the other melted (or melting two furnaces with the same power).

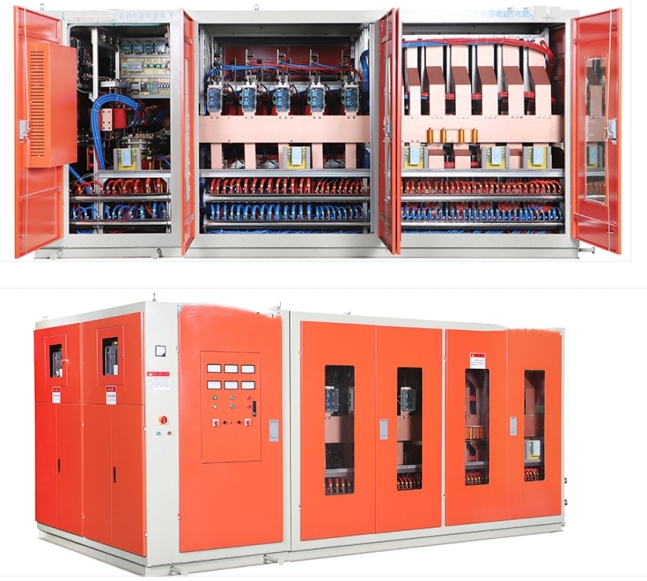

Modular design of series resonant power supply cabinet with wide copper bars and 12 and 24 pulse rectification.

The main switch of the circuit breaker is equipped with a current detection function. When the equipment is running normally, the inspection workers can intuitively see the incoming power supply and quickly judge the operation status of the equipment based on the current condition.

Intelligent melting

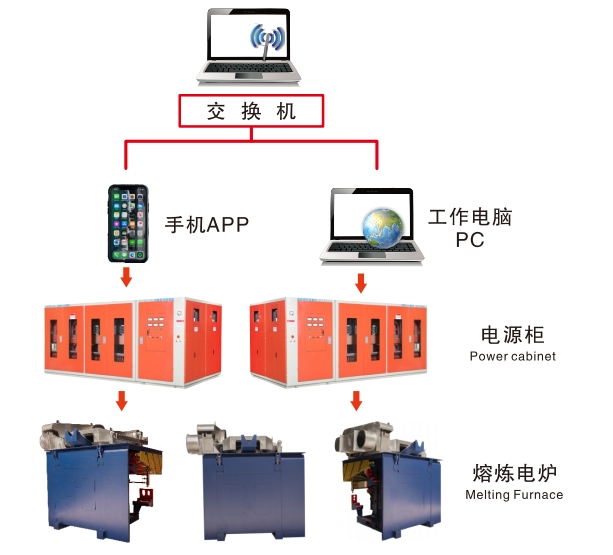

Automatic oven drying, cold furnace start-up, fault diagnosis, fault information display and storage, operation information display, system status display, etc. The system achieves remote monitoring, automatic alarm, online diagnosis and maintenance through Ethernet communication module for data transmission, ensuring the integration of management and operation. Collecting massive amounts of data can also detect security risks in advance, greatly reducing the cost of product maintenance in the later stages. It can also be connected to the company's MES system.

Computer Intelligent Remote Operating System

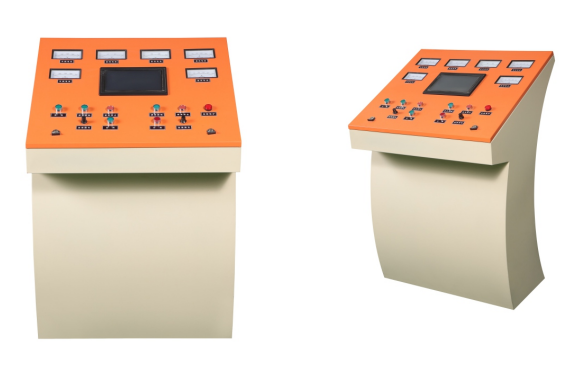

The computer operating system remote operating system is equipped with a large-sized touch screen, which includes functions such as automatic baking, cold furnace start, automatic insulation, intelligent melting management, and display and storage of fault information.

The power cabinet is installed in the basement, and the remote operating system is placed on the stove platform to operate the power supply. The operation is very simple, just start or stop the dial.

This system can monitor various electrical parameters during equipment operation, including phase voltage, current, and active power. Active power, reactive power, power factor, working time, power consumption and other very practical parameters, especially for power factor, there are relatively high requirements for power consumption enterprises in various regions. The high or low power factor is closely related to the working attitude of the equipment. Through this system, we can clearly know our own power consumption status and make timely adjustments.
