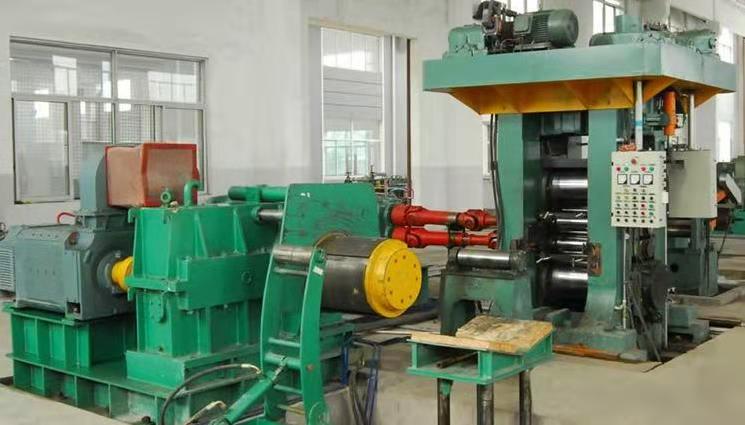

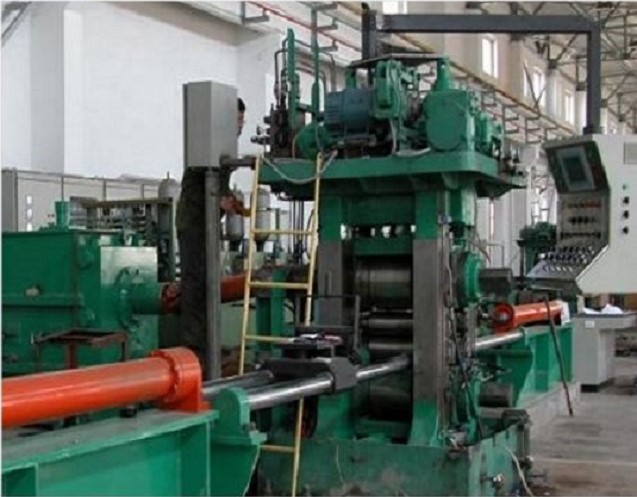

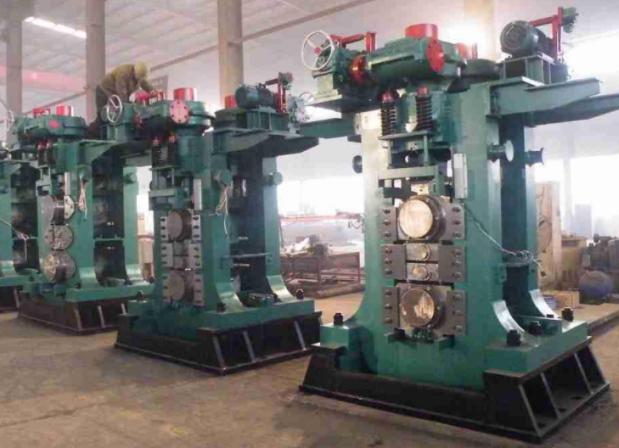

Four High Rolling Mill

Four-Roll Hot Rolling Mill:

In the realm of metalworking, the four-roll hot rolling mill stands as a critical component, playing a pivotal role in shaping and reducing the thickness of metal sheets. This detailed exploration, presented by the engineering team at RunHao Machinery, delves into the mechanical intricacies of the four-roll mill, with a particular focus on the roll system assembly, axial adjustment mechanism, roll seam adjusting mechanism, pull rod assembly, and roll balancing device.

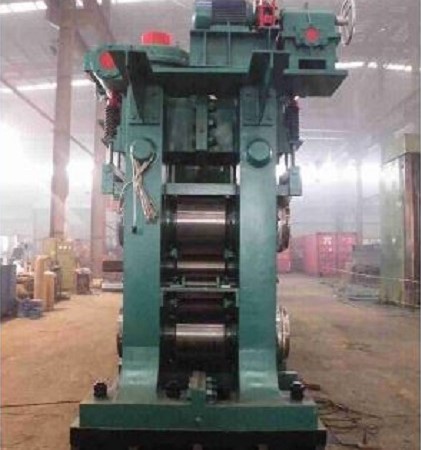

Roll System Assembly:

The roll system assembly of the four-roll hot rolling mill comprises four cylindrical rolls arranged in a unique configuration. These rolls, crafted from materials such as high-chromium steel or specialized alloys, play a fundamental role in the hot rolling process by applying controlled pressure to the metal, achieving the desired thickness, and material properties.

Axial Adjustment Mechanism:

Precision takes the spotlight with the axial adjustment mechanism, a ballet of control dictating the separation between the four rolls. Whether through hydraulic grace or mechanical precision, this mechanism allows operators to finesse the mill, tailoring it to the intricate demands of diverse material thicknesses and ensuring an elegant uniformity in the final product.

Roll Seam Adjusting Mechanism:

The roll gap adjusting mechanism employs advanced engineering, commonly utilizing hydraulic or electric systems to achieve precise control over the distance between the rolls. This feature is indispensable for maintaining consistent product thickness and quality throughout the rolling process.

Pull Rod Assembly:

Enter the pull rod assembly, an ensemble orchestrated by screws or hydraulic mastery. This assembly, composed of materials boasting strength and durability, engages in a symmetrical dance to adjust the upper, middle, and lower rolls, withstanding the powerful forces inherent in the rolling process.

Roll Balancing Device:

To counterbalance the gravitational drama of the rolls and ensure uniform pressure during rolling, a roll balancing device seamlessly integrates into the narrative. This device significantly contributes to the overall stability and precision of the mill, becoming a maestro influencing the crescendo of the final rolled product.

Advantages of Four-Roll Hot Rolling Mill:

The four-roll hot rolling mill introduces a medley of advantages, including a sophisticated design, operational ease, and the ability to process an array of metals. Its robust structure and efficient roll arrangement position it as a versatile artisan in the metalworking industry, shaping its own niche.

Considerations and Conclusion:

While the four-roll hot rolling mill takes a bow as a versatile and indispensable tool in metal processing, the encore lies in meticulous considerations. The selection of materials for the rolls, the precision in maintaining axial adjustments, and the overarching structural integrity of the mill compose the notes of a profound symphony. A deep understanding of these factors is pivotal for optimizing the performance and durability of the four-roll hot rolling mill in industrial applications.

Different customers often have unique requirements, including heating methods, production capacity, workshop area, etc. Hence, what customers truly need is a comprehensive hot rolling mill solution. Typically, upon receiving customers' production requirements and plans, RunHao engineers and designers convene to study and formulate a complete set of hot rolling mill equipment solutions.
