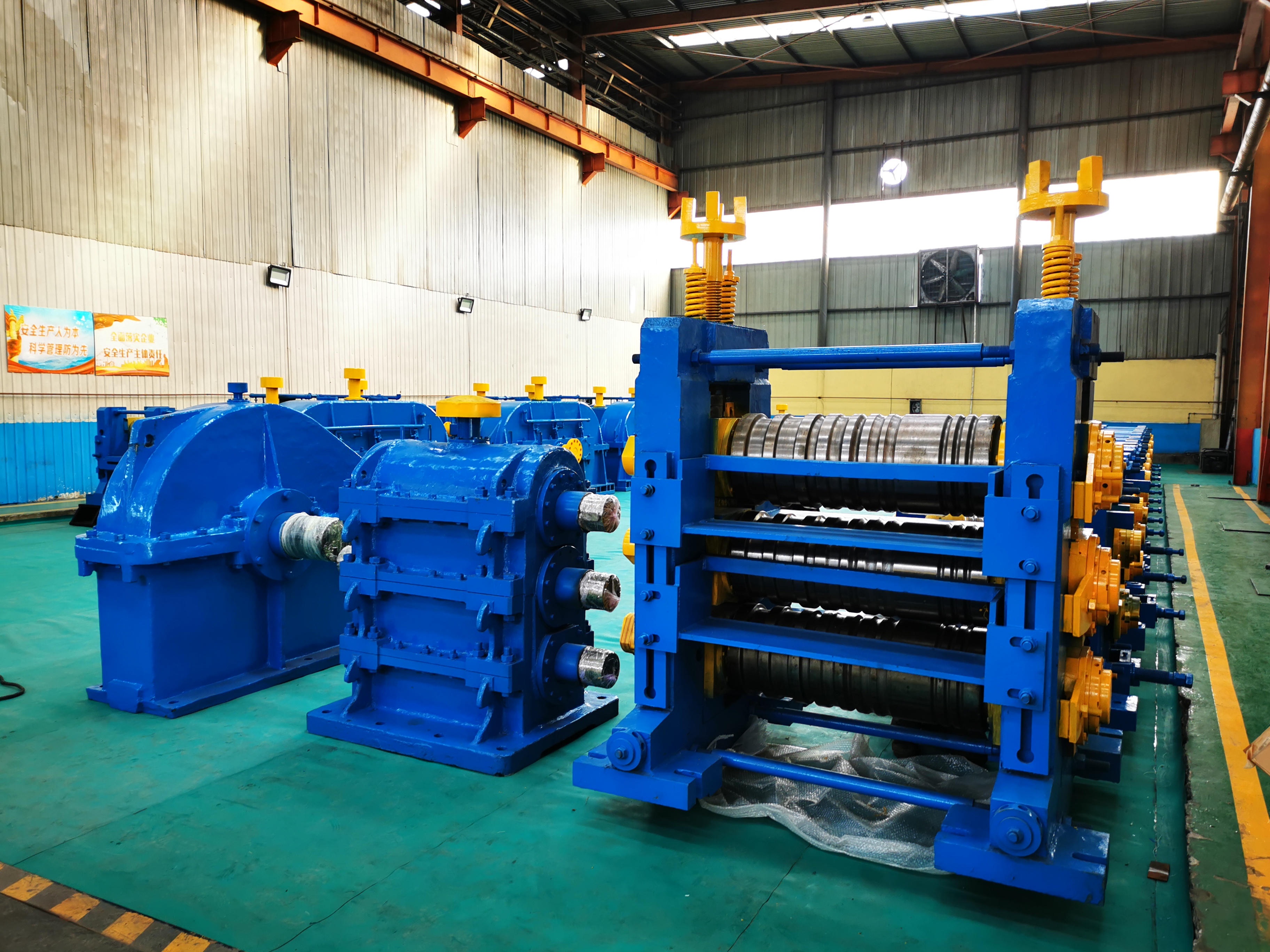

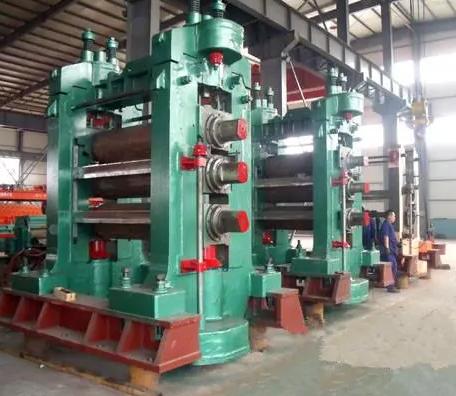

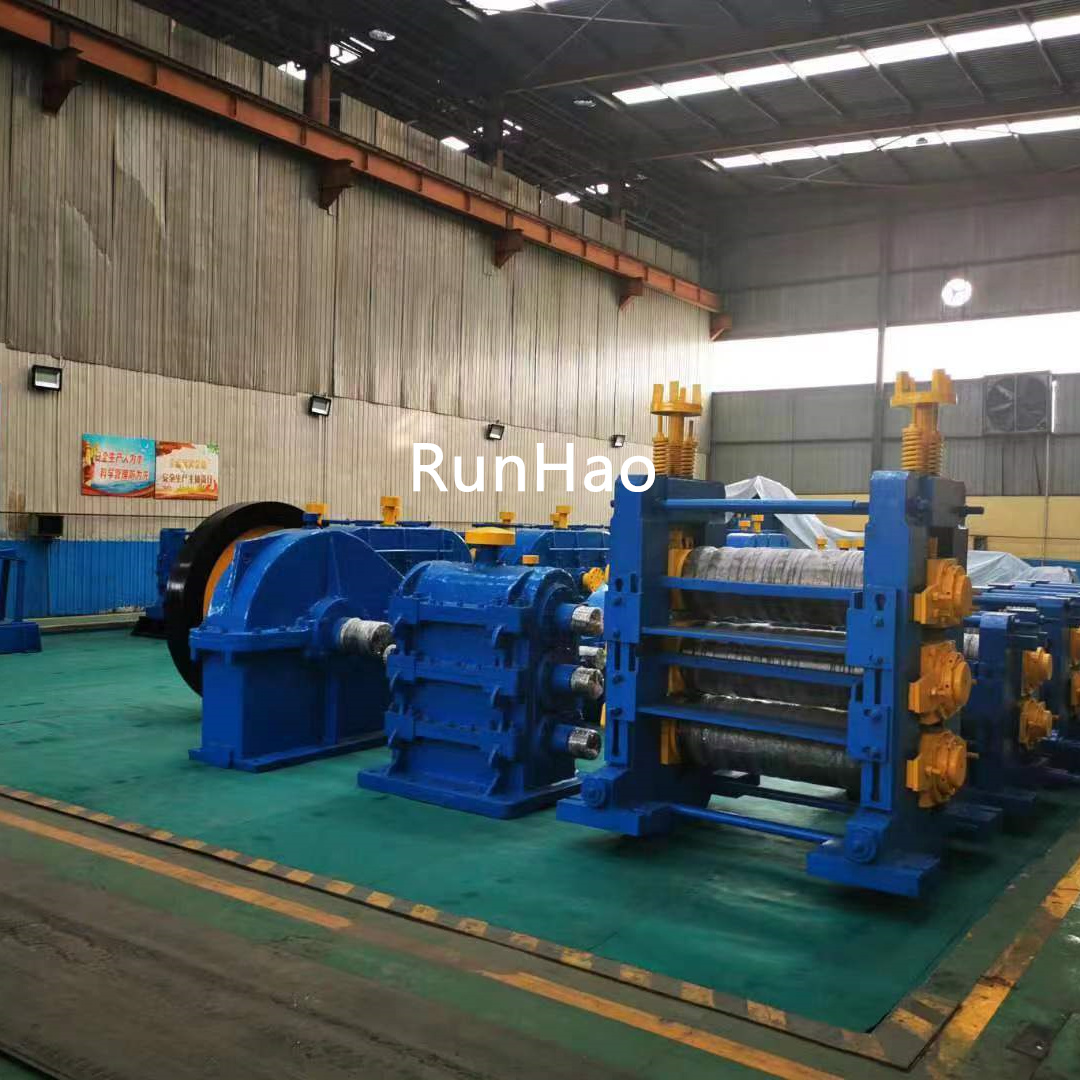

Three high rolling mill

The three-roll hot rolling mill stands as a cornerstone in metalworking, playing a pivotal role in shaping and reducing the thickness of metal sheets. This comprehensive exploration, presented by the engineering team at RunHao Machinery, delves into the intricate mechanical features of the three-roll mill, with a focus on the roll system assembly, axial adjustment mechanism, roll seam adjusting mechanism, pull rod assembly, and roll balancing device.

Roll System Assembly:

The roll system assembly comprises three cylindrical rolls positioned in a triangular configuration. These rolls are instrumental in the hot rolling process, applying pressure to the metal to achieve the desired thickness and material properties. Material selection for the rolls, often high-chromium steel or specialized alloys, is critical to withstand the intense heat and mechanical stresses inherent in the rolling operation.

Axial Adjustment Mechanism:

The axial adjustment mechanism provides precise control over the separation between the three rolls. This adjustment is vital for accommodating varying material thicknesses and ensuring uniformity in the final product. Hydraulic or mechanical systems are commonly employed for axial adjustments, empowering operators to fine-tune the mill based on specific production requirements.

Roll Seam Adjusting Mechanism:

The roll gap adjusting mechanism employs sophisticated engineering, frequently utilizing hydraulic or electric systems to achieve precise control over the distance between the rolls. This feature is essential for maintaining consistent product thickness and quality throughout the rolling process.

Pull Rod Assembly:

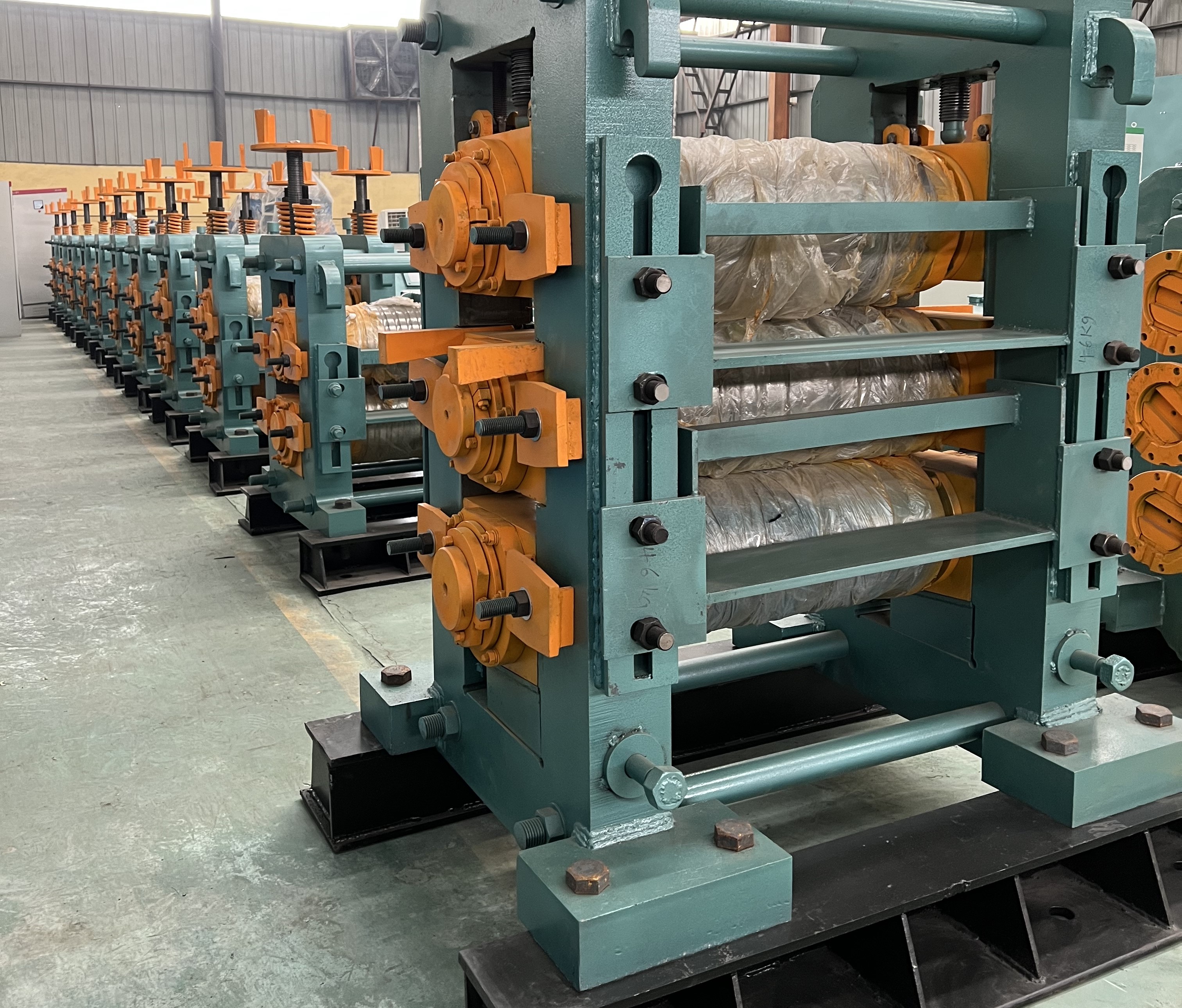

The pull rod assembly, manipulated by screws or hydraulic systems, facilitates symmetrical adjustment of the upper, middle, and lower rolls. Materials chosen for the pull rod assembly are characterized by their strength and durability, ensuring the assembly can withstand the substantial forces inherent in the rolling process.

Roll Balancing Device:

To counteract the impact of the dead weight of the rolls and ensure uniform pressure during rolling, a roll balancing device is integrated. This device contributes to the overall stability and precision of the mill, exerting a significant influence on the quality of the final rolled product.

Advantages of Three-Roll Hot Rolling Mill:

The three-roll hot rolling mill boasts advantages such as a sophisticated design, operational ease, and versatility in processing various metals. Its robust structure and efficient roll arrangement contribute to its widespread adoption in the metalworking industry.

Considerations and Conclusion:

While the three-roll hot rolling mill stands out as a versatile and indispensable tool in metal processing, critical considerations encompass the selection of materials for the rolls, meticulous maintenance of axial adjustments, and the overall structural integrity of the mill. A profound understanding of these factors proves crucial for optimizing the performance and durability of the three-roll hot rolling mill in industrial applications.
